We Manufacturing

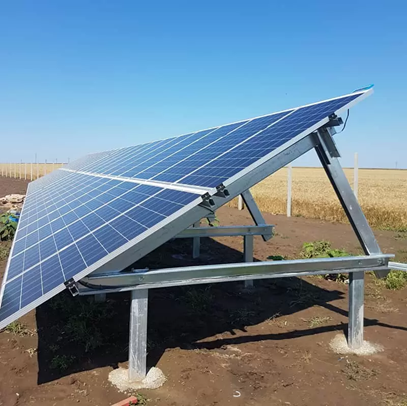

Solar Power

Solar installations have been rapidly increasing around the world. India has contributed a significant portion of the expansion, and with a target of 500 GW by 2025, it is on the verge of becoming the world’s largest solar nation. Module Mounting Structures are critical to the proper operation of a solar power system, both on the utility grid and the roof. While the most balance of system (SOS) components, including inverters, DC cables, junction boxes, transformers, and so on, are easily available from equipment manufacturers, an EPC contractor’s workmanship is mostly evident through module mounting structures and wiring management. These frameworks allow panels to rest comfortably, avoid damage, and, most significantly, place them at a perfect tilt angle to capture the maximum amount of solar energy. Rooftops, ground mounting, carports, and sun tracker systems all have mounting structures that have evolved in terms of weight, material, versatility, and ease of installation.

Hind steel energy Supplies the different type of solar structures

  1. Water pumping Structure
  2. Roof Mounted Structure
  3. Ground Mounted Structure
  4. Top-of-pole Mounted Structure
  5. Side-of-pole Mounted Structure

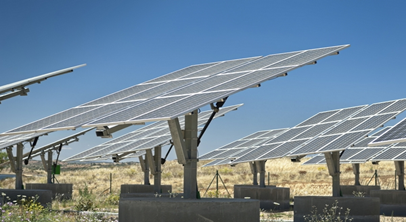

  6. Tracking System Mounted Structure
  7. Street lighting mounted Structure
solar1

Balance of System (BOS) Kits

Our BOS Kits provide a complete, ready-to-install solution for solar projects, ensuring installers have all the essential components required for a successful setup. Whether for ground pump installations or rooftop solar systems, our BOS kits include:

Wiring and Connectors: High-quality cables and connectors for secure, efficient connections. Earthing Solutions: Comprehensive grounding components to ensure safety and performance. HDPE Pipes: Durable and flexible for water management in solar water pump installations. Agricultural Spares: Specialized parts for seamless integration with solar-powered agricultural systems. AC/DC Distribution Boxes: Pre-assembled and tested boxes for smooth control and distribution of electrical power.

Telecommunication

Transmission structures are one of the most visible elements of the electric transmission system. They support the conductors used to transport electric power from generation sources to customer load. Transmission lines carry electricity over long distances at high voltages, typically between 115 kV and 765 kV (115,000 volts and 765,000 volts).

There are many different designs for transmission structures. Two common types are:

telecommuntion

Lattice Steel Towers (LST), which consist of a steel framework of individual structural components that are bolted or welded together.
Tubular Steel Poles (TSP), which are hollow steel poles fabricated either as one piece or as several pieces fitted together.Both LSTs and TSPs can be designed to carry either one or two electrical circuits, referred to as single-circuit and doublecircuit structures (see examples above). Double-circuit structures typically hold the conductors in a vertical or stacked.

transmission line

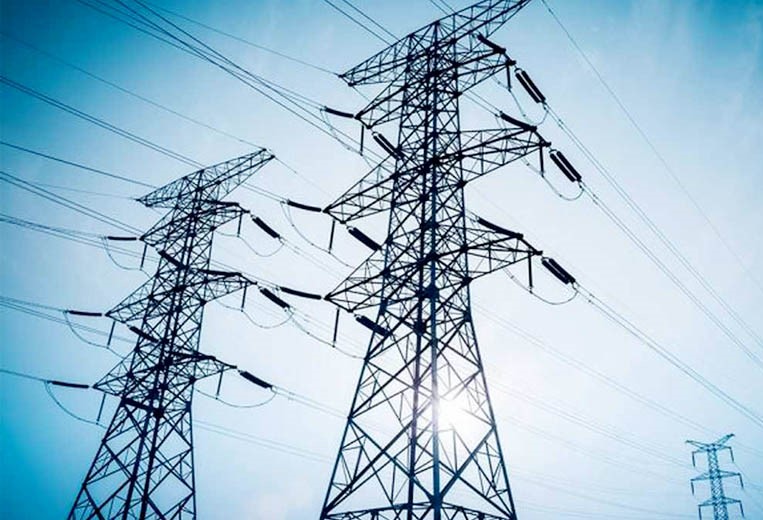

Transmission Line

configuration, whereas single-circuit structures typically hold the conductors horizontally. Due to the vertical configuration of the conductors, double-circuit structures are taller than single-circuit structures. On lower voltage lines, structures sometimes carry more than two circuits.
A single-circuit alternating current (AC) transmission line has three phases. At low voltages, a phase usually consists of one conductor. At high voltages (over 200 kV), a phase can consist of multiple conductors (bundled) separated by short spacers.
A double-circuit AC transmission line has two sets of three phases.

Dead-end towers are used where a transmission line ends; where the transmission line turns at a large angle; on each side of a major crossing such as a large river, highway, or large valley; or at intervals along straight segments to provide additional support. A dead-end tower differs from a suspension tower in that it is built to be stronger, often has a wider base, and has stronger insulator strings.

Structure sizes vary depending on voltage, topography, span length, and tower type. For example, double-circuit 500-kV LSTs generally range from 150 to over 200 feet tall, and single-circuit 500-kV towers generally range from 80 to 200 feet tall. Double-circuit structures are taller than single-circuit structures because the phases are arranged vertically and the lowest phase must maintain a minimum ground clearance, while the phases are arranged horizontally on single-circuit structures. As voltage increases, the phases must be separated by more distance to prevent any chance of interference or arcing. Thus, higher voltage towers and poles are taller and have wider horizontal cross arms than lower voltage structures.

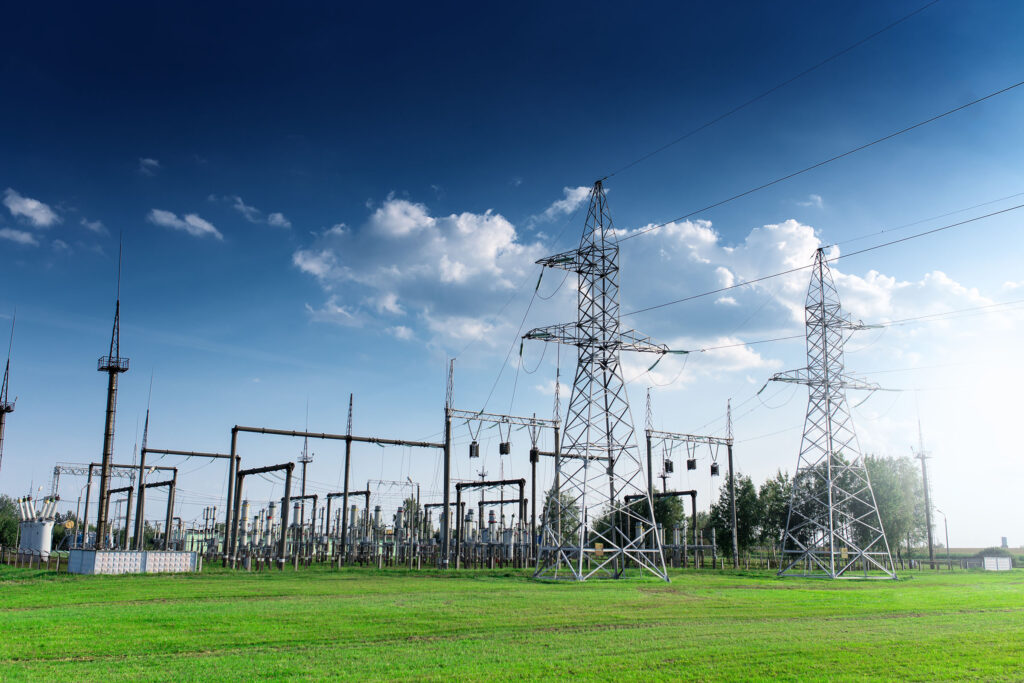

Sub-Station Structure

VSP also manufactures the wide range of Substation structures like transformers, lightning arrestor, beams, Gantries, Equipment Support Structures etc . We have the expertise in galvanizing all kinds of substation structures with high quality norms.

We have shorter delivery times thanks to our standardized designs. We are constantly evolving, adapting to new needs on the market for Technical and sales support to serve customers and their needs, Advanced calculation tools, Optimization of resources.

power station on blue sky at daytime

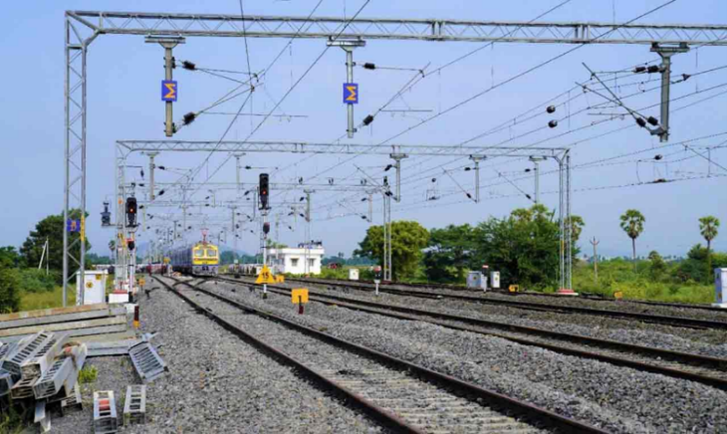

Railway Electrification Structures

Hind steel energy is  Supplier to supply the Galvanized Steel Structures like Column, Gantries & Small Steel parts in RDSO and CORE (Central Organization of Railway Electrification). We also supplied the structures for Delhi Metro Rail Corporation, Lucknow Metro Rail Corporation, Bangalore Metro Rail Corporation & Jaipur Metro Rail Corporation.

railway
bolt

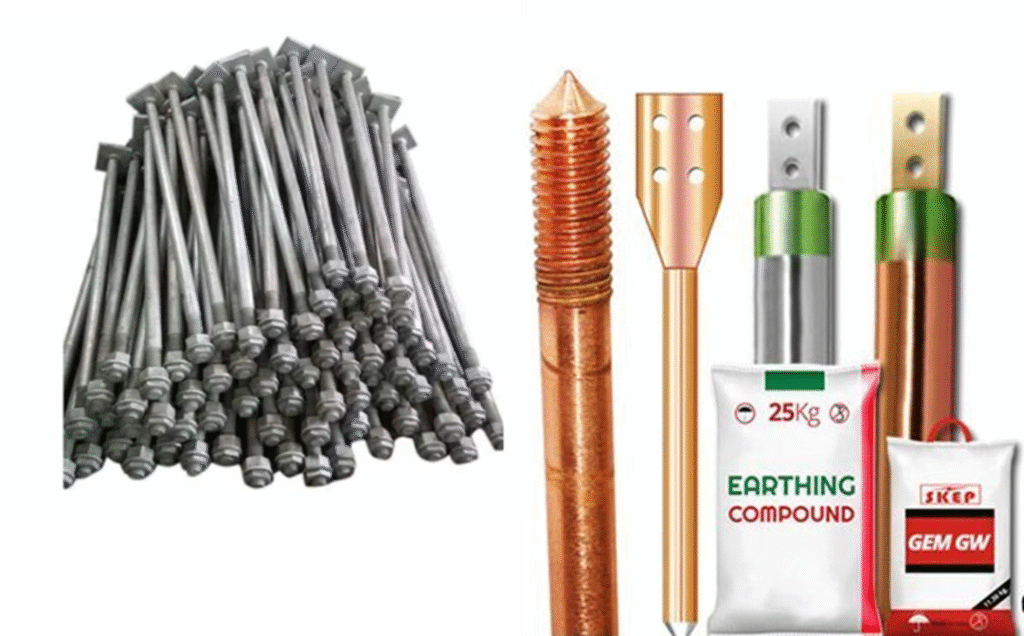

Foundation Bolts & Earthing Material

Hind steel energy manufactures the foundation bolts upto 100mm diameter with Galvanization. Hind steel energy also supplies the eathing material like Galvanized Flats, Copper Flats, Cast Iron type Earthing, GI Pipe Type Earthing, GI Rod Type Earthing and Bus Bar etc.

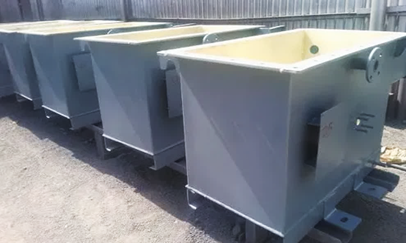

Transformers Tank

Transformer tank is used to hold, protect, cool the winding and core in one Electrical distributor transformer. The tank body provides isolation of oil and the core from the outside environment. Hind steel energy offers to supply the different type of transformer tanks like Plain Steel Sheet Tank. Tube Tank.

  1. Tank with separate coolers.
  2. Corrugated wall type transformer tanks.
  3. Transformer Oil Tanks without cooler.
  4. Radiatorpanel type tanks.
  5. Tubular cooling type tanks.
transform
cable

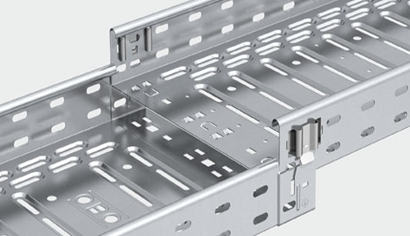

Cable Trays

Hind steel energy is also largest manufacturers of cable trays for cabling Management System. We manufacture and supply the perforated and ladder type cable trays with galvanization. We also supply the accessories of cable trays like coupling plates, TEE Bend, Horizontal type 90 degree Bend, Vertical Type 90 Degree Bend (Inside/ Outside), Reducer Bend (Left Side/ Right Side), Cross Bend (equal/ Unequal).
